PROMAT – PROMASEAL® IBS™ Foam Strip

$0.00

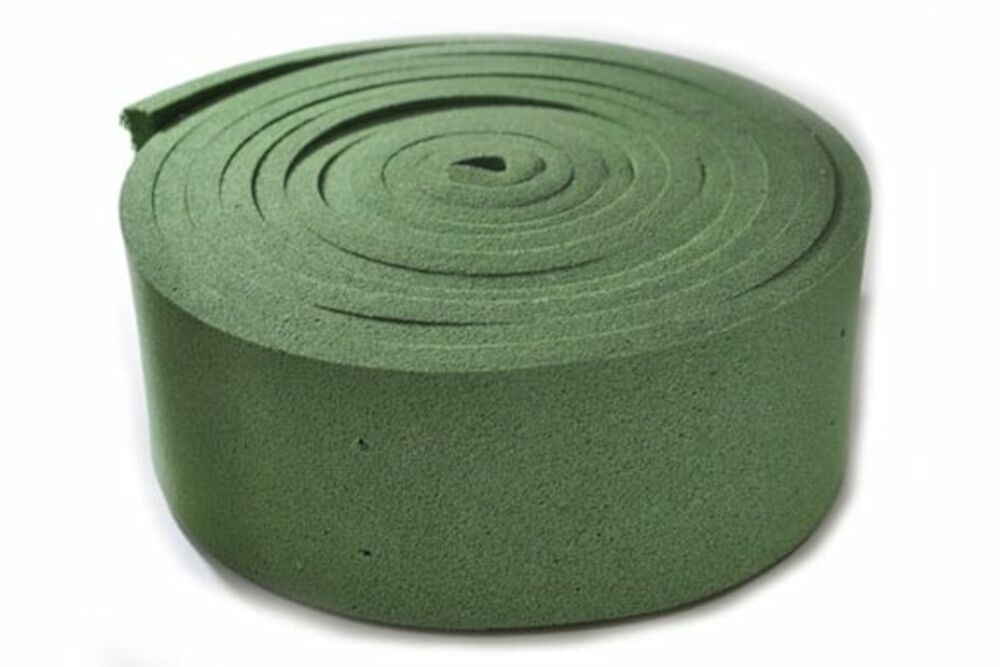

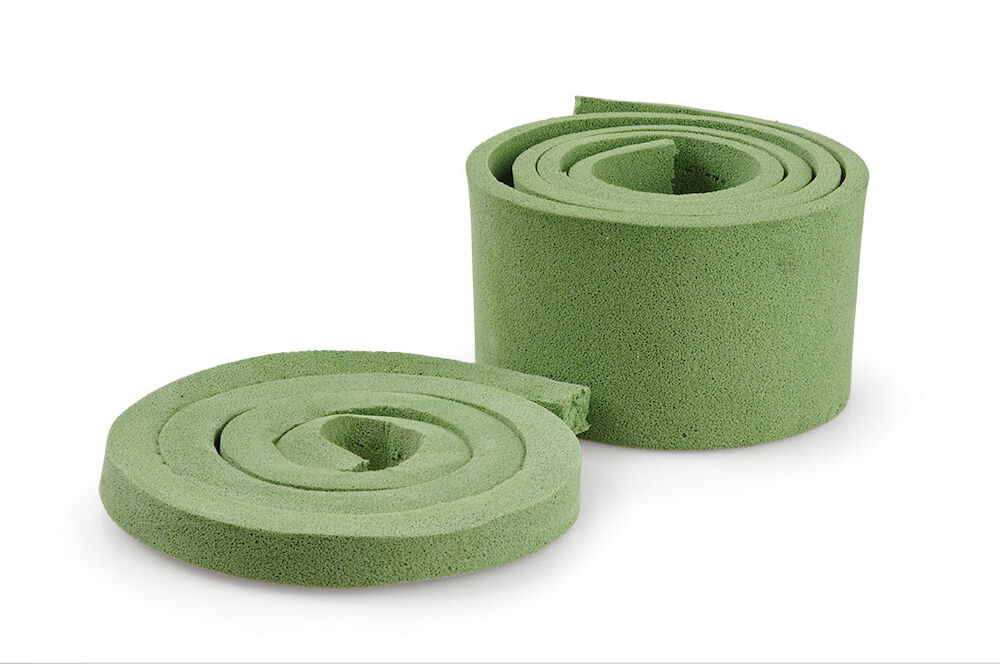

PROMASEAL^® IBS™ is a fire resistant, flexible foam strip which, when placed in joints and around service penetrations in floors and walls, will maintain the fire resistance of the separating element. In most instances the addition of PROMASEAL^®-A Acrylic Sealant is necessary. On some occasions a non fire resistant sealant can be applied.

PROMASEAL^® IBS™ is a factory made product and can be easily verified as being installed in the correct manner.

PROMASEAL^® IBS™ generally is used in lieu of a fire resistant sealant where the specifying authority or certifying body is concerned that the correct depths of sealant or the correct type sealant may not be applied by the contractor.

PROMASEAL^® IBS™ accommodates movement in building services, e.g. the expansion or contraction of metal pipes, while maintaining the integrity of the penetration. It can be used for external wall joints in conjunction with an exterior grade sealant.

PROMASEAL^® IBS™ is not designed for use in control joints that are designed to accommodate high or ongoing movement.

Options:
PROMASEAL® IBS™ Foam Strip 16mm (150m)
PROMASEAL® IBS™ Foam Strip 22mm (100m)
PROMASEAL® IBS™ Foam Strip 29mm (60m)
PROMASEAL® IBS™ Foam Strip 38mm (30m)
PROMASEAL® IBS™ Foam Strip 50x20mm (50m)
PROMASEAL® IBS™ Foam Strip 100x10mm (50m)

Description
Additional information

Description

Applications:

Control Joints and Service Penetrations

Benefits:

Up to 4 hours fire resistance
Easy to use
Quick to install
Allows for pipe movement
Approvals for control joints as well as penetration seals for metal pipes, cables and cable trays
Coloured for ease of identification

Colour: Green

Shelf Life (months): 60 months

Storage Conditions: Store in cool and dry conditions.

Please check with the manufacturer for the most up-to-date system applications, installation requirements and test data

Additional information

Type	PROMASEAL® IBS™ Foam Strip 16mm (150m), PROMASEAL® IBS™ Foam Strip 22mm (100m), PROMASEAL® IBS™ Foam Strip 29mm (60m), PROMASEAL® IBS™ Foam Strip 38mm (30m), PROMASEAL® IBS™ Foam Strip 50x20mm (50m), PROMASEAL® IBS™ Foam Strip 100x10mm (50m)
