Passive Fire Protection – Fire Rated Products, Systems and Solutions

PROMAT – PROMASEAL® Retrofit Collars – Round Base

$0.00

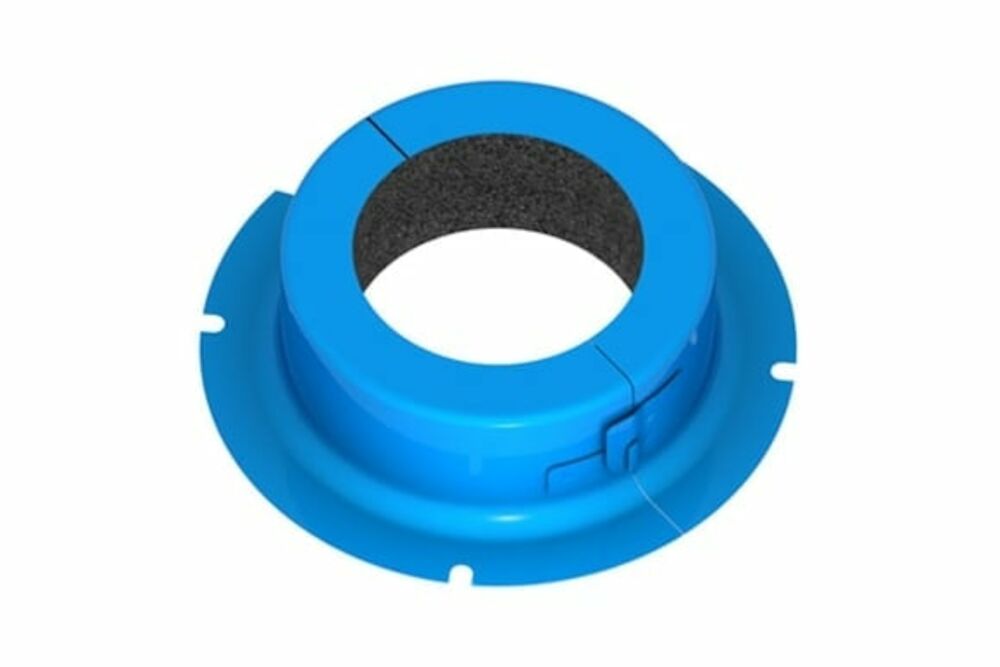

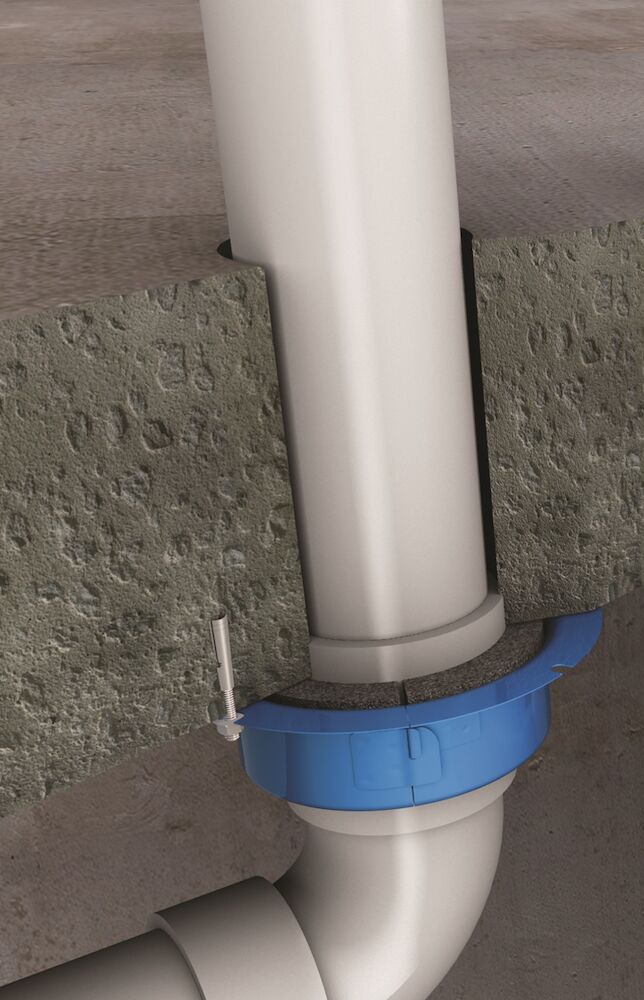

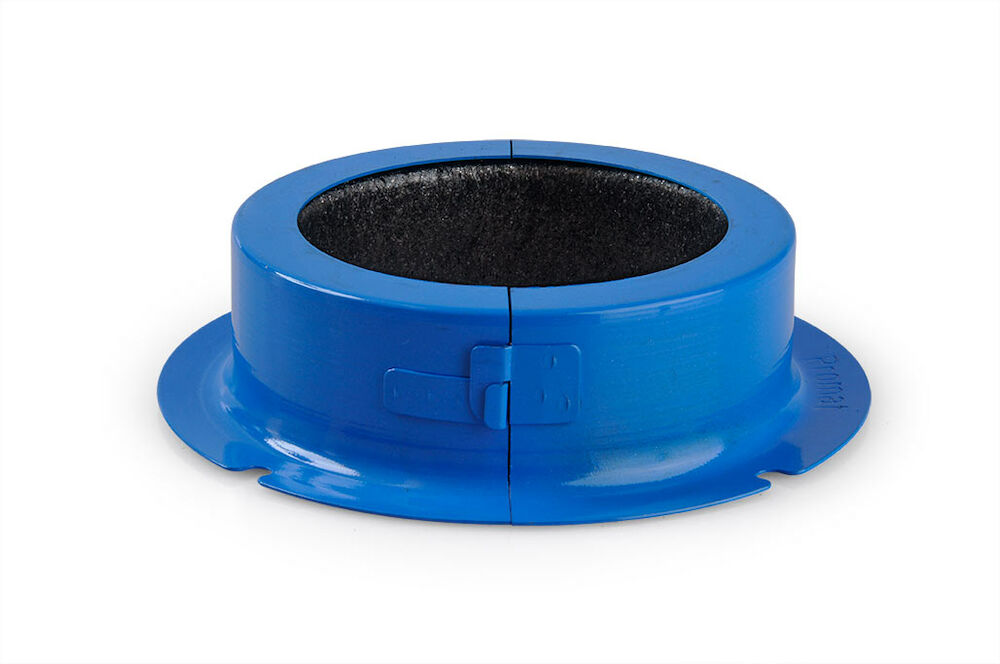

Circular based PROMASEAL^® Retrofit Collar (FCS type) is designed to be fitted around installed pipes that pass through floor slabs and have been tested with uPVC, HDPE and ABS pipes up to 100mm diameter. The larger opening within the collars will accommodate pipes (and uPVC pipe fittings) that have differing outside diameters. The split type collar can be retrofitted where necessary. It is available in a range of sizes to suit plastic pipes up to 110mm outside diameter.

For installation information go to: https://www.promat.com/en-au/construction/our-know-how/watch-learn/

Options:
PROMASEAL® Retrofit Collar – Socket 40mm (20/box)
PROMASEAL® Retrofit Collar – Socket 50mm (15/box)
PROMASEAL® Retrofit Collar – Socket 65mm (15/box)
PROMASEAL® Retrofit Collar – Socket 100mm (10/box)

Description
Additional information

Description

Applications:

Plastic Pipe Penetrations through slabs

Benefits:

Suitable for installation over sockets / joiners (uPVC only)
Tested with uPVC, HDPE, ABS plastic pipes as well as Postmix and beer lines
Suitable for protecting cables and insulated copper pipes
Available in 40, 50, 65 and 100mm

Colour: Blue

Approx. Expansion Ratio (550 °C): 1:9

Approx. Expansion Temperature (°C): 185 °C

Shelf Life (months): 120 months

Storage Conditions: Store in cool and dry conditions.

Please check with the manufacturer for the most up-to-date system applications, installation requirements and test data

Additional information

Type	PROMASEAL® Retrofit Collar – Socket 40mm (20/box), PROMASEAL® Retrofit Collar – Socket 50mm (15/box), PROMASEAL® Retrofit Collar – Socket 65mm (15/box), PROMASEAL® Retrofit Collar – Socket 100mm (10/box)
