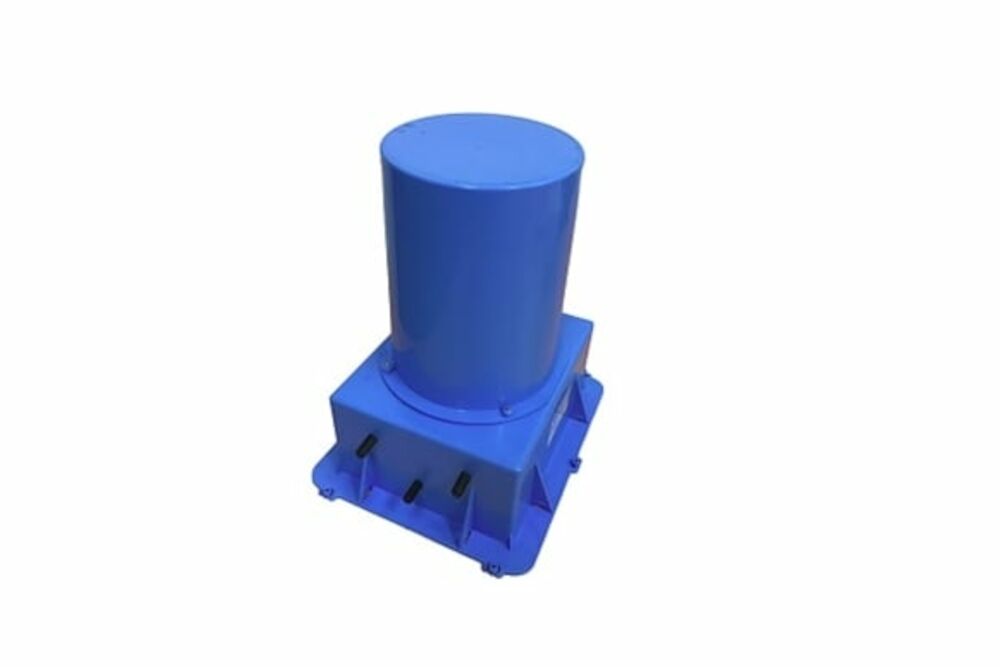

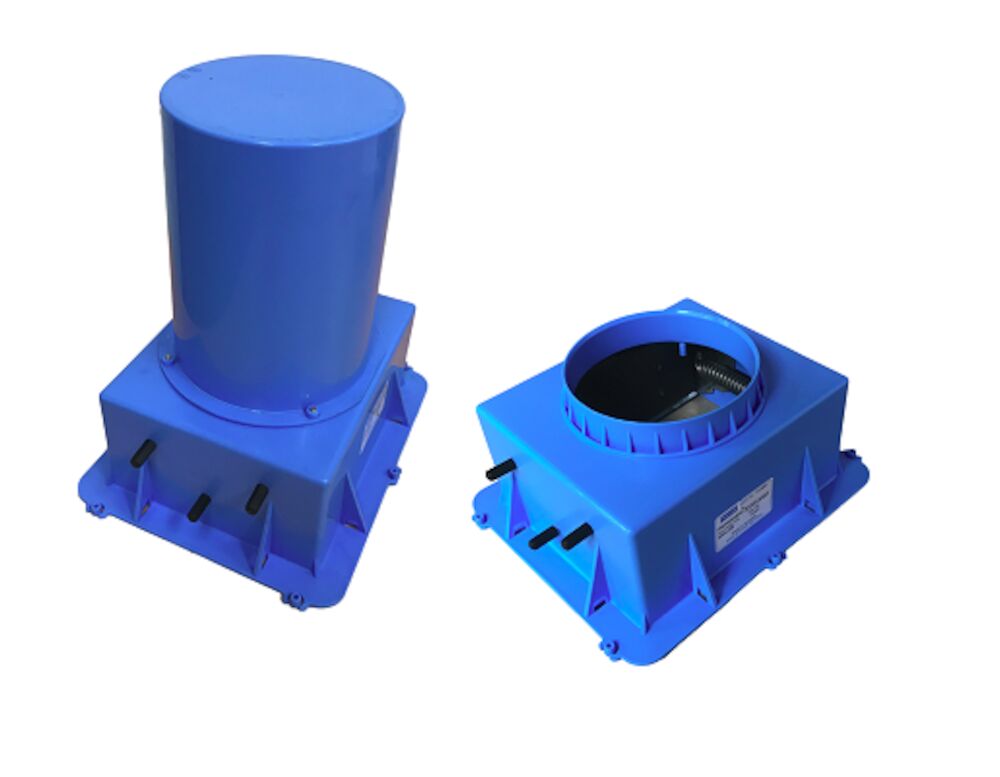

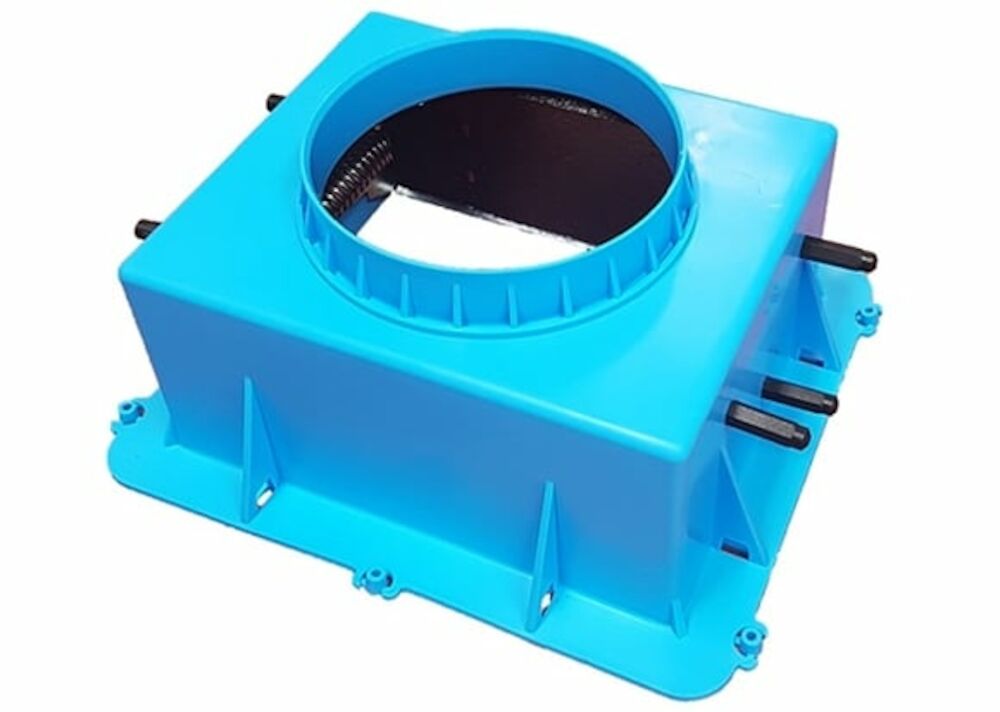

PROMAT – PROMASEAL® Cast-In Collars – FLOORWASTE

$0.00

Floor waste collars help prevent the passage of fire and smoke through openings in compartment floors in the event of a fire. For installation of collars on permanent formwork and in thin floor slabs (<150mm) always contact Promat. These collars are available in various models and the type used depends on the certification required for the building.

PROMASEAL^® Floor Waste Collars (Patent Pending) are designed to provide fire resistance where floor wastes penetrate wet areas. The collars have been tested for cast-in floor applications with the pipe fitting within the collar and when tested to AS1530: Part 4 and AS4072: Part 1 achieved an FRL of -/240/240.

The FWC100 collar is suitable for 50, 80 & 100mm uPVC, 100mm HDPE and 100mm Rehau Raupiano pipe. Minimum Slab depth is 150mm.

Options:
PROMASEAL® Floorwaste Collar 100mm (10/box)
PROMASEAL® Floorwaste Collar 50mm – HIGH (6/box)
PROMASEAL® Floorwaste Collar 80mm – HIGH (6/box)
PROMASEAL® Floorwaste Collar 100mm – HIGH (6/box)

Description
Additional information

Description

Applications:

Plastic Pipe Floor Waste Penetrations in Floors

Benefits:

Tested for uPVC, HDPE and Raupiano pipe
Can have socket/coupling for either uPVC or HDPE installed within collar
To suit 50, 80 & 100mm pipes
High and Low version available

Colour: Blue

Approx. Expansion Ratio (550 °C): 1:9

Approx. Expansion Temperature (°C): 185 °C

Shelf Life (months): 120 months

Storage Conditions: Store in cool and dry conditions.

Please check with the manufacturer for the most up-to-date system applications, installation requirements and test data

Additional information

Size	PROMASEAL® Floorwaste Collar 100mm (10/box), PROMASEAL® Floorwaste Collar 50mm – HIGH (6/box), PROMASEAL® Floorwaste Collar 80mm – HIGH (6/box), PROMASEAL® Floorwaste Collar 100mm – HIGH (6/box)
