Passive Fire Protection – Fire Rated Products, Systems and Solutions

PROMAT – PROMASEAL® FlexiWrap – Intumescent Wrap

$0.00

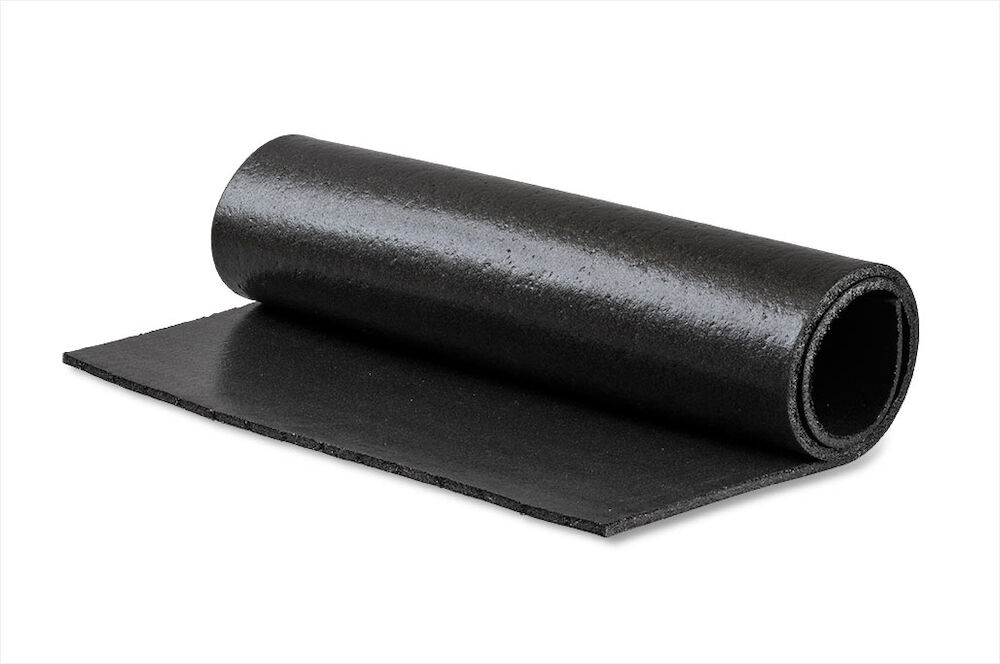

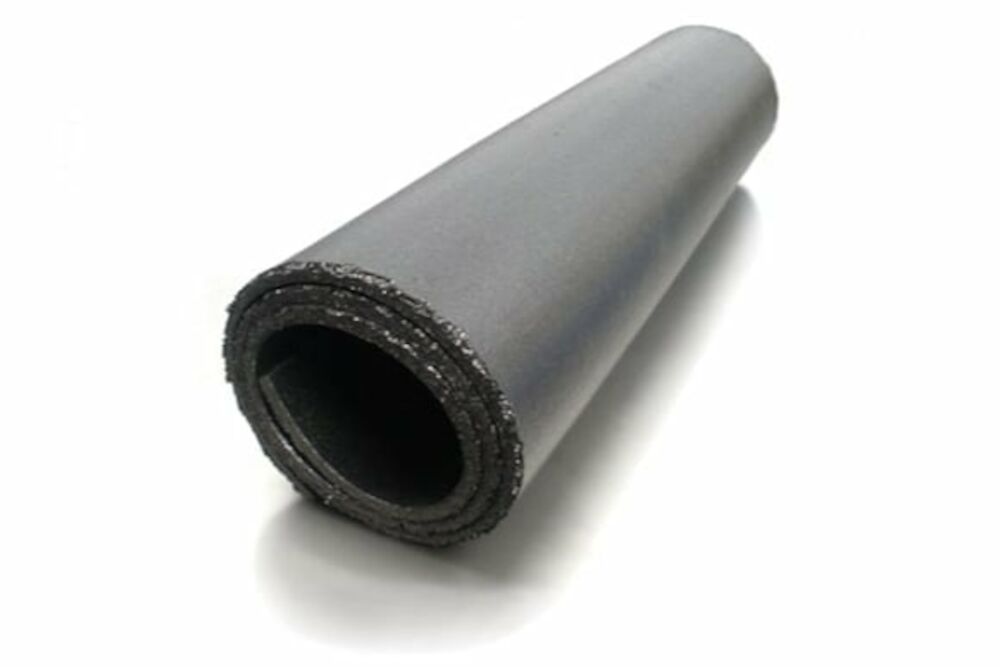

PROMASEAL® FlexiWrap is manufactured with Promat intumescent technology. It is designed to provide fire resistance where combustible insulation is used as thermal insulation around metal pipes.

PROMASEAL® FlexiWrap has been tested up to Fire Resistance Level (FRL) -/240/120 with copper pipes through concrete/masonry floors and walls or lightweight partitions (with an equal or greater fire resistance level) where they are generally combustible and potential for fire, hot gases and smoke to bypass the compartmentation. It is not tested on plastic pipes.

Options:
PROMASEAL® FlexiWrap – Intumescent Wrap 850x450x6mm (5/box)

Description

Applications:

  • Insulated Metal Pipes

Benefits:

  • Protection for insulated pipes without requiring removal of the insulation
  • Up to 100mm pipes tested for wall penetrations
  • Tested with multiple pipes in one opening
  • Tested with bundles of up to 3 pipes (individual wrap for each pipe required)
  • Tested in a variety of wall types
  • Standard Size 850x450x6mm
Approx. Expansion Ratio (550 °C): 1:9
Approx. Expansion Temperature (°C): 185 °C
Colour: Dark grey
Shelf Life (months): 120 months
Storage Conditions: Store in cool and dry conditions.
Please check with the manufacturer for the most up-to-date system applications, installation requirements and test data

Additional information

Type

PROMASEAL® FlexiWrap – Intumescent Wrap 850x450x6mm (5/box)
