Trafalgar’s Australian Made FyreCOLLAR Cast-in range of fire collars provides a full range of solutions for use in both stack pipe and floor waste applications, with up to 4 hours across a huge range of common pipes types and sizes. Specifically for stack and plumbing pipes, locally made, injection moulded and designed to be cast directly into concrete floor slabs for the provision of plastic pipe penetrations without the need to pre-install sections of pipework, decreasing the amount of time spent on site.

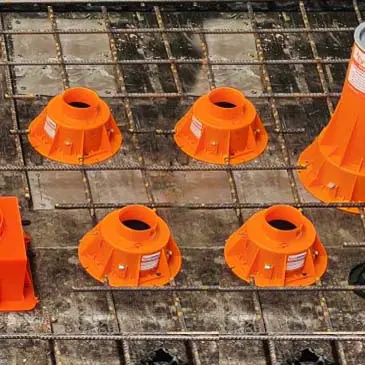

Trafalgar low top cast-in fire collars are suitable for all thickness slabs. These low-profile collars are cast in place with a section of pipe installed before the concrete is poured, for pipework to be connected to once set.
Stack Pipe Applications – where the pipe runs continuously through the slab (drain, waste and vent, DWV).
Options:
FyreCOLLAR Cast In Stack Low Cast Collar 40mm
FyreCOLLAR Cast In Stack Low Cast Collar 50mm
FyreCOLLAR Cast In Stack Low Cast Collar 65mm
FyreCOLLAR Cast In Stack Low Cast Collar 80mm
FyreCOLLAR Cast In Stack Low Cast Collar 100mm
Please check with the manufacturer for the most up-to-date system applications, installation requirements and test data
| Type | FyreCOLLAR Cast In Stack Low Cast Collar 40mm, FyreCOLLAR Cast In Stack Low Cast Collar 50mm, FyreCOLLAR Cast In Stack Low Cast Collar 65mm, FyreCOLLAR Cast In Stack Low Cast Collar 80mm, FyreCOLLAR Cast In Stack Low Cast Collar 100mm |
|---|
