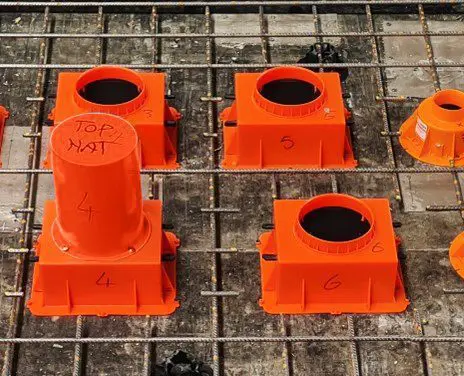

Trafalgar’s Australian Made Cast-In fire collars provide a full range of cast-in fire stopping solutions for floor waste applications, with approvals up to 4 hours across a huge range of common pipe types and sizes.
Floor waste applications are not continuous pipes, often having a metal grille finished at the floor level above. Standard intumescent collars will not close off the penetration quickly enough to prevent early fire spread.
Our floor waste fire collar is fitted with a spring-loaded mechanical system that will shut the plastic pipe early when exposed to fire conditions, to effectively close off the penetration whilst the intumescent material swells to close off any remaining gaps, stopping the spread of fire in this unique application.
Options:
FyreCOLLAR Cast In Floor Waste Collar 100mm (Standard)

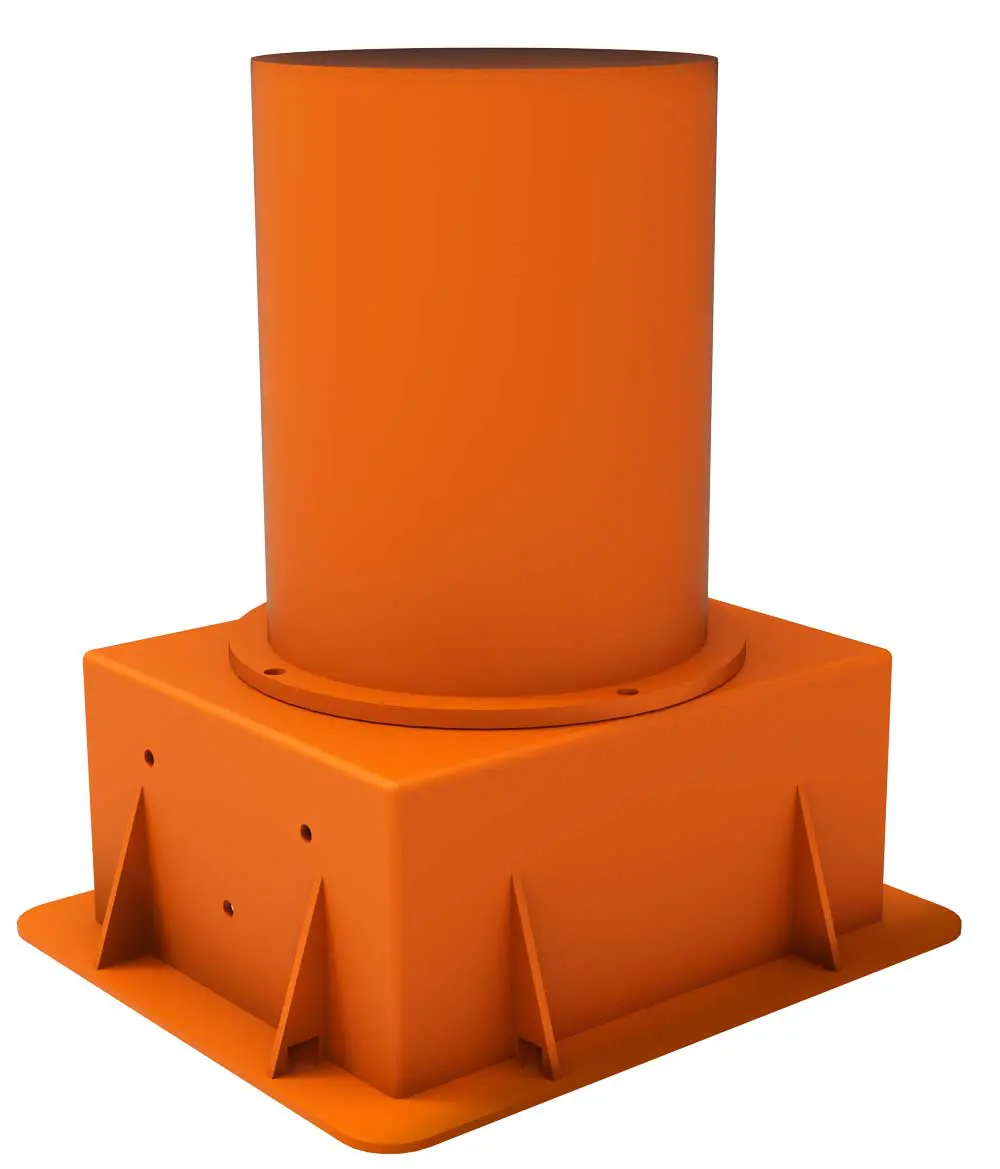

FyreCOLLAR Cast In Floor Waste Collar 100mm (High)

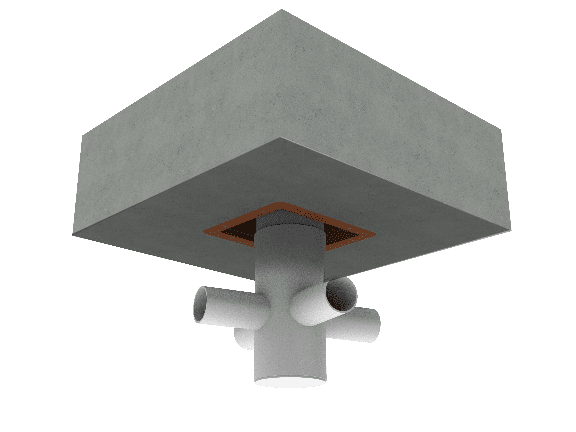

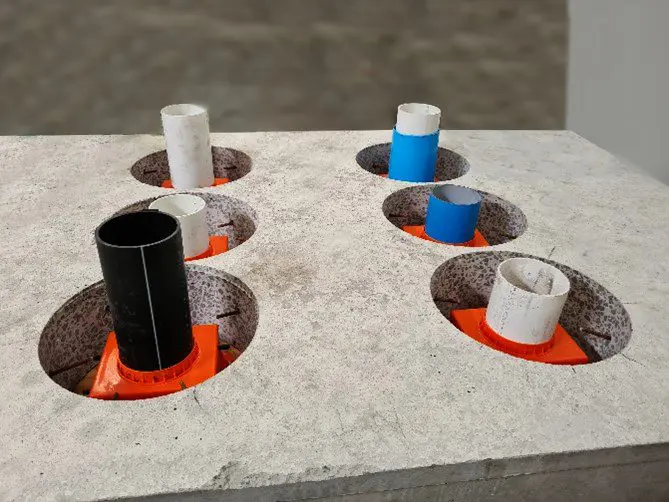

Tested to AS1530.4 FyreCOLLAR Floor Waste fire collars are available in high and low tops and has been tested for a range of pipe materials connected to 4-way risers and P-traps directly underneath the slab for the following 100mm pipes:
Please check with the manufacturer for the most up-to-date system applications, installation requirements and test data
| Type | FyreCOLLAR Cast In Floor Waste Collar 100mm (Standard), FyreCOLLAR Cast In Floor Waste Collar 100mm (High) |
|---|
