Trafalgar Fire – FyreWRAP

$0.00

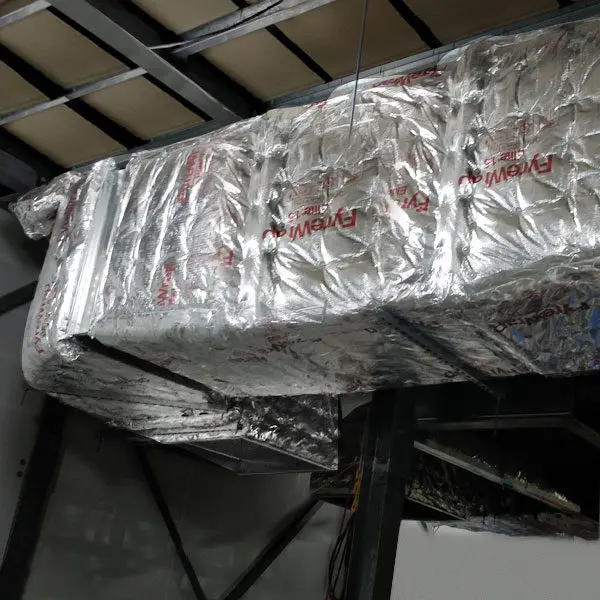

FyreWrap® is the leading passive fire protection solution for commercial ductwork. The lightweight bio-soluble and totally safe Insulfrax core ensures high temperature insulation and performance. Each roll is fully encapsulated in Aluminium foil which includes a fiberglass reinforced scrim proving a clean and professional look, tear-resistance, and antibacterial resistance.

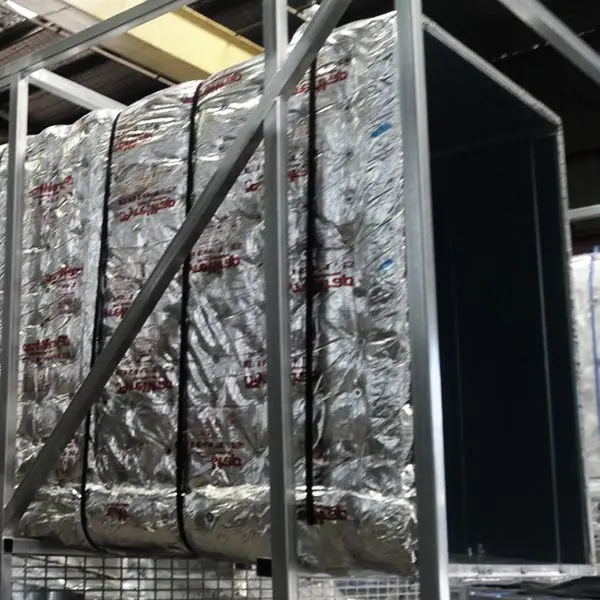

Fyrewrap is ideal for off-site fabrication and fire protection of fire-rated ductwork systems and has a patent fire-rated access panel system to augment the overall fire-rated duct system.

If you are looking for fast, clean, and easy duct fire protection, FyreWrap is your number one choice.

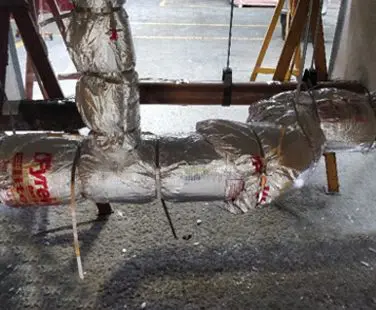

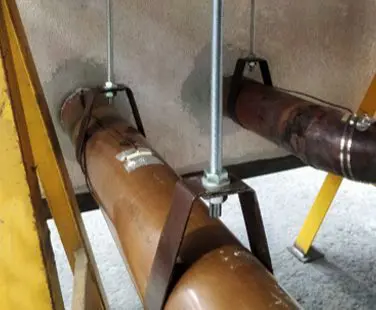

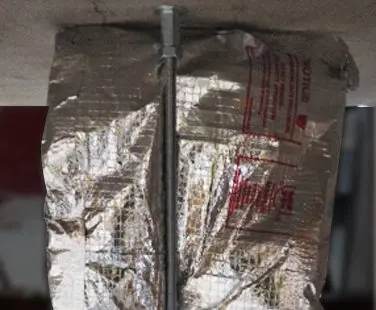

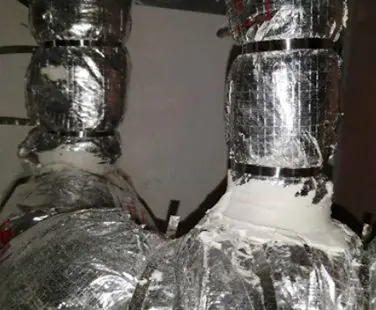

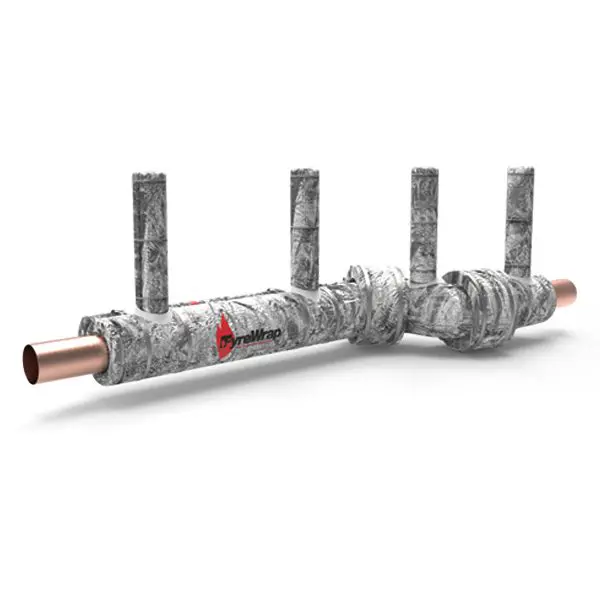

Due to its fast clean and easy nature, Trafalgar Fire’s FyreWrap is now approved for use in the protection of steel pipe hangers and brackets, and Delete hydrant pipes in non-sprinklered fire compartments within a building. The FyreWrap system is simple to install and provides safe and compliant protection in a range of applications to meet AS2419 requirements to prevent the early collapse of hydrant systems.

Additionally,  get quick and easy access to ducts that are protected by the FyreWrap® system with Fyre®Wrap Access Panels. The patented design allows for easy installation and uses and with various stock and custom sizes available.

Options:

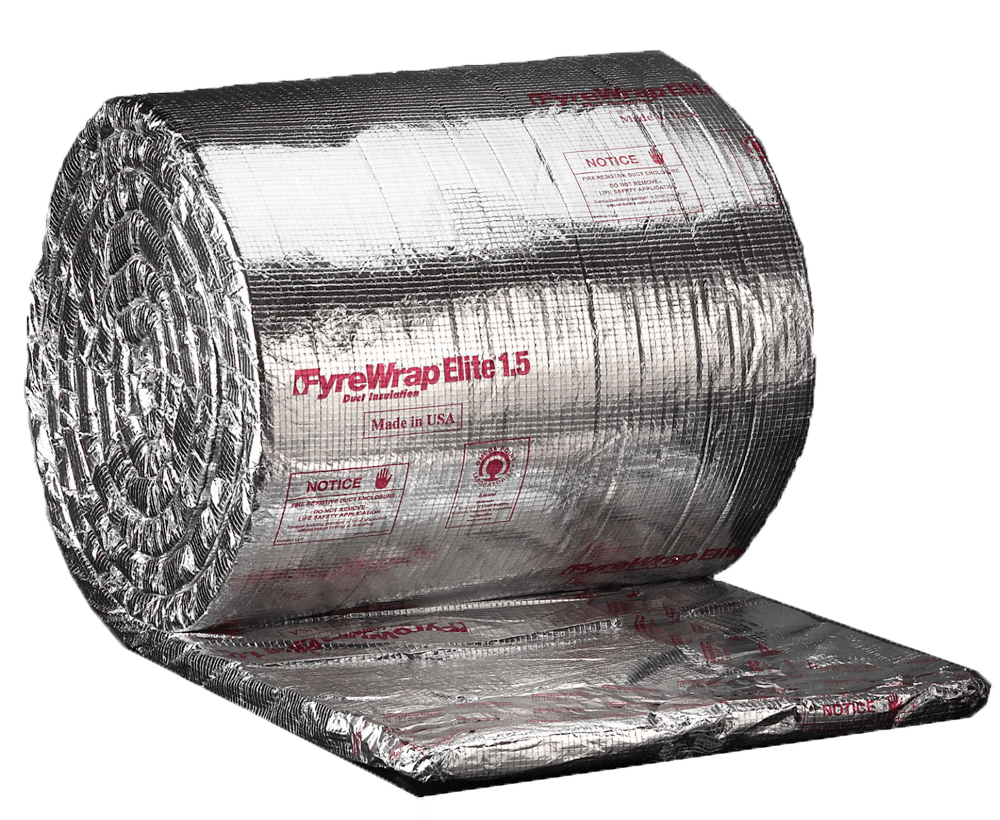

FyreWRAP Roll – Length 7620mm x Width 610mm x Thickness 38mm (12 rolls per pallet)
FyreWRAP Roll – Length 7620mm x Width 1220mm x Thickness 38mm (6 rolls per pallet)
Galvanized Angles- L Shape Thickness: 1.9mm Gal Size: 2440mm Dimensions: 125 x 100 x 1220mm
Galvanized Angles- L Shape Thickness: 1.5mm Gal Size: 2440mm Dimensions: 75 x 75 x 1220mm

Description

Key Features

  • Lightweight – up to 5 times lighter than traditional fire spray
  • Clean and easy installation – no mesh required
  • Greenguard listed for microbial resistance
  • No masking required
  • Quick and efficient construction
  • Simple repair – tape up or replace section
  • Seismic and vibration tolerant
  • Tested and approved in accordance with AS 1530.4-2005 and AS/NZS 1530.4-2014
  • Flexible material for easy installation
  • Secured simply with steel cable ties
  • Greenguard listed for microbial resistance
  • Compliant to AS2419 for steel pipe hanger and support protection

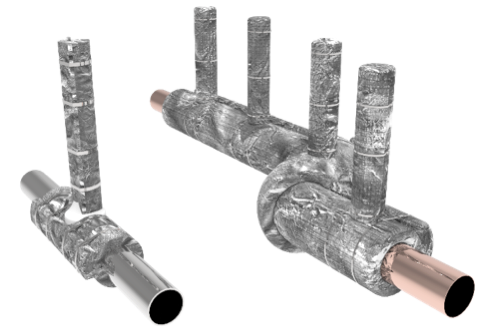

  • Compliant to AS2419 for copper hydrant protection
  • Easy Access to ductwork with Fyre®Wrap Access Panels

Applications:

Additional information

Type

FyreWRAP Roll – Length 7620mm x Width 610mm x Thickness 38mm (12 rolls per pallet), FyreWRAP Roll – Length 7620mm x Width 1220mm x Thickness 38mm (6 rolls per pallet), Galvanized Angles- L Shape Thickness: 1.9mm Gal Size: 2440mm Dimensions: 125 x 100 x 1220mm, Galvanized Angles- L Shape Thickness: 1.5mm Gal Size: 2440mm Dimensions: 75 x 75 x 1220mm
