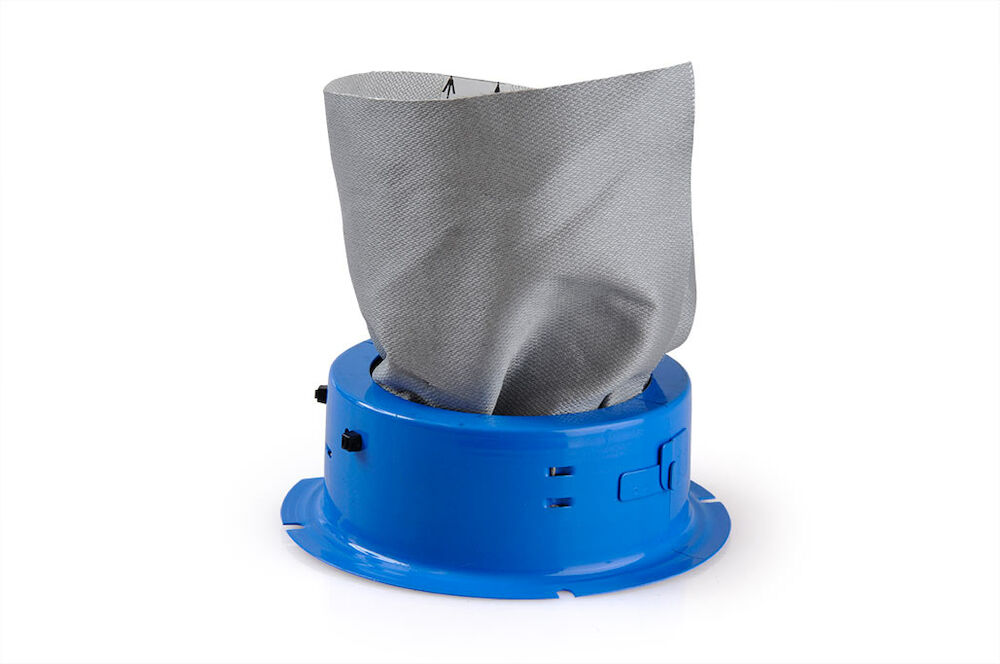

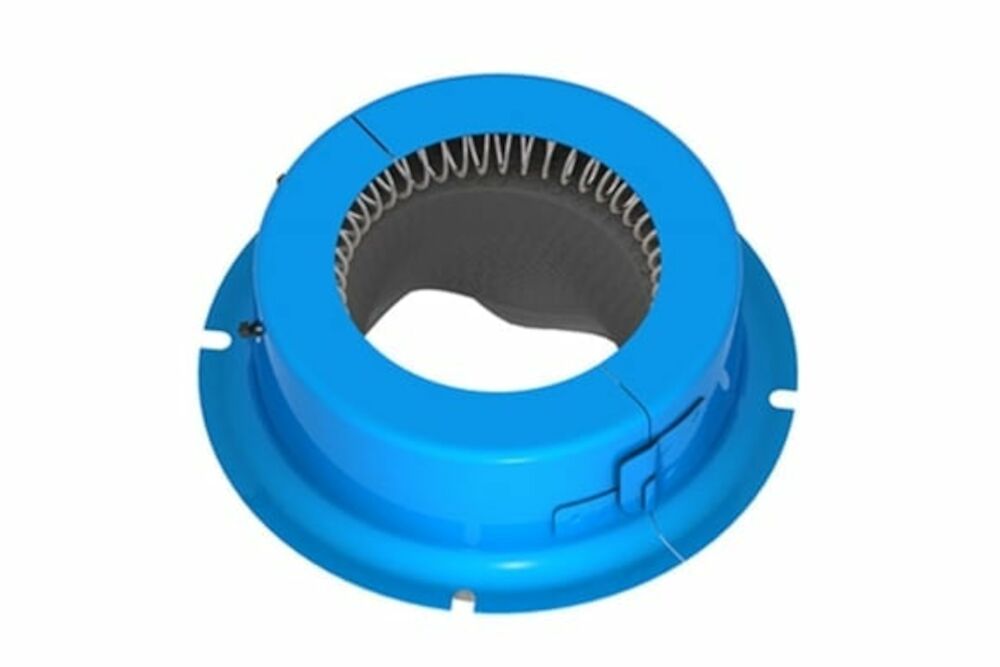

PROMAT – PROMASEAL® Retrofit Floorwaste Collar

$0.00

PROMASEAL^® Retrofit Floor Waste Collar is designed to provide fire resistance where floor wastes penetrate wet areas.

PROMASEAL^® Retrofit Floor Waste Collar is surface mounted (retrofit) type that provides integrity and insulation criteria for uPVC floor waste traps of 50mm, 80mm and 100mm diameters. For installation of PROMASEAL^® Retrofit Floor Waste Collar on permanent form work and in thin floor slabs, please consult Promat.

Options:
PROMASEAL® Retrofit Floorwaste Collar (7/box)

Description
Additional information

Description

Applications:

Plastic Pipe Floor Waste Penetrations
Tested for concrete slabs from 70mm thick
Tested for Promat SYSTEMPANEL 2G – Floor Ceiling System

Benefits:

Suitable for 50, 80 & 100mm uPVC pipes
Can be installed over pipe socket / joiner
Also approved for Triplus, Fastflow, dBlue and Raupiano pipes
For HDPE floor wastes refer to the PROMASEAL Retrofit Collar (Circular Base)

Colour: Blue

Approx. Expansion Ratio (550 °C): 1:9

Approx. Expansion Temperature (°C): 185 °C

Shelf Life (months): 120 months

Storage Conditions: Store in cool and dry conditions.

Please check with the manufacturer for the most up-to-date system applications, installation requirements and test data

Additional information

Type	PROMASEAL® Retrofit Floorwaste Collar (7/box)
