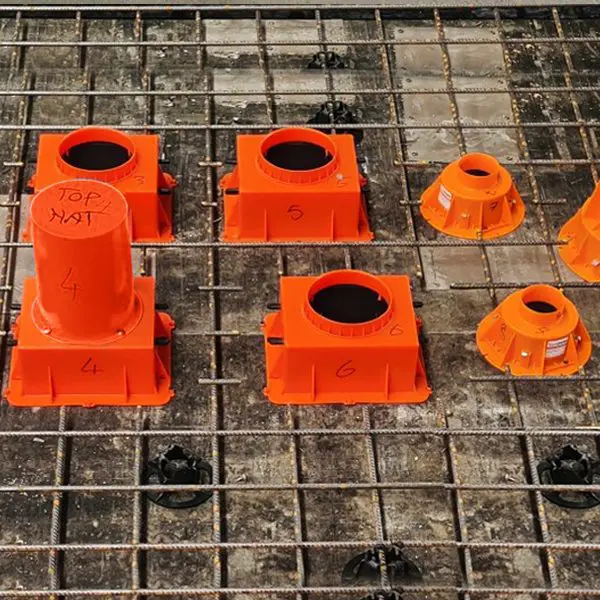

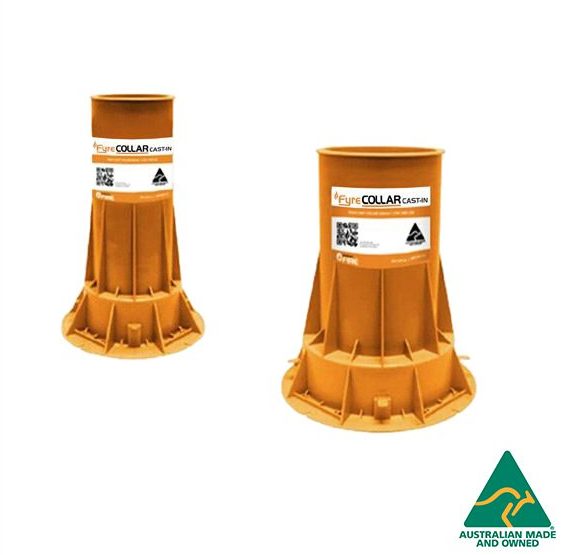

Trafalgar’s Australian Made FyreCOLLAR Cast-in High Top range of fire collars provides a full range of solutions for use in both stack pipe and floor waste applications, with up to 4 hours across a huge range of common pipes types and sizes. Specifically for stack and plumbing pipes, locally made, injection moulded and designed to be cast directly into concrete floor slabs for the provision of plastic pipe penetrations without the need to pre-install sections of pipework, decreasing the amount of time spent on site.

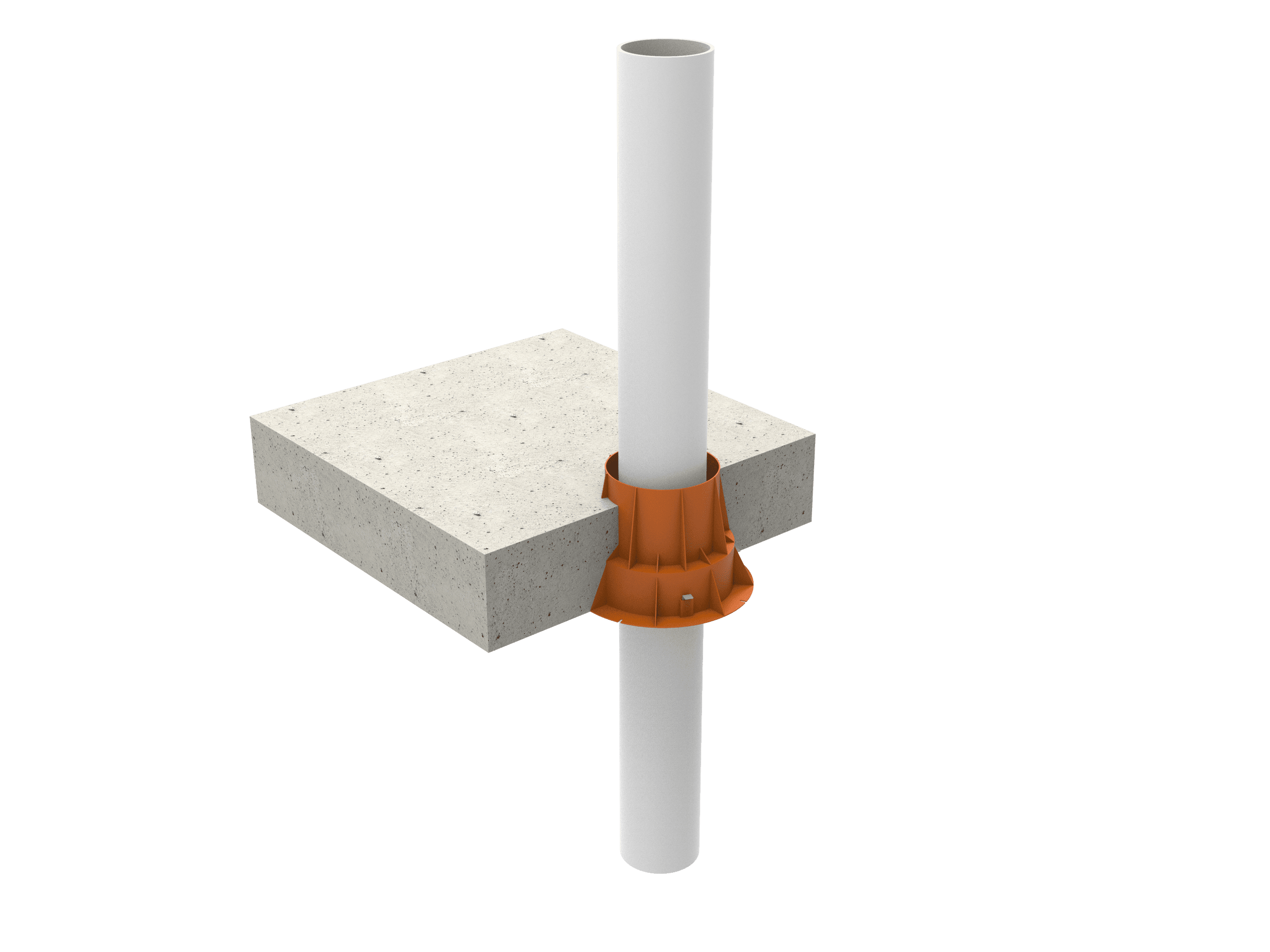

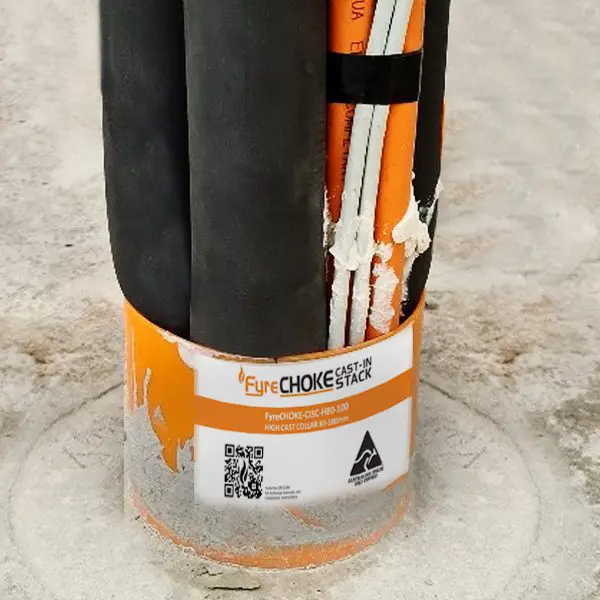

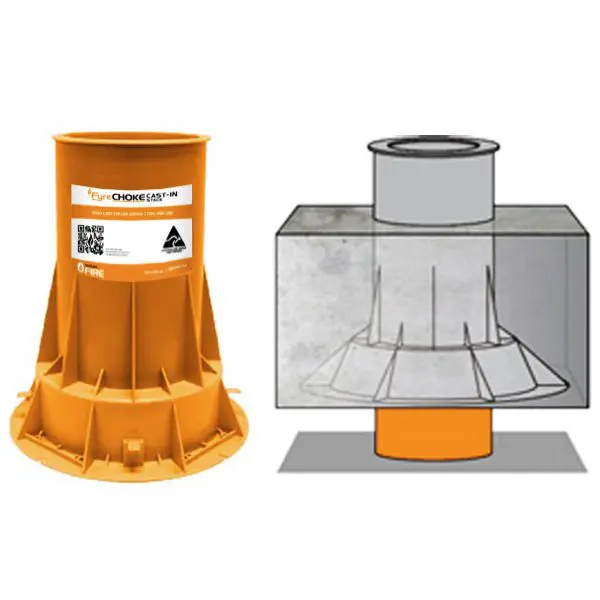

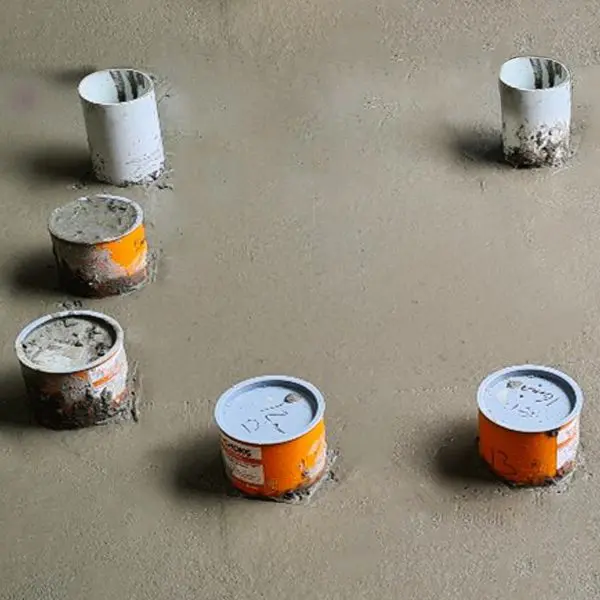

These collars are designed for use in concrete floor slabs up to 250mm thick, where the head of the high cast-in fire collar extends above the surface of the floor so that sections of pipe are not needed as part of the installation process. Once the concrete is set, simply run your plastic or metal pipes through the collars which are fitted with a rubber gasket to prevent smoke leakage through the penetration.
The high top cast-in fire collars are available in three sizes each suitable for a range of pipe sizes:
Options:
FyreCOLLAR Cast In Stack High Cast Collar 40-65mm
FyreCOLLAR Cast In Stack High Cast Collar 80-100mm
Please check with the manufacturer for the most up-to-date system applications, installation requirements and test data
| Type | FyreCOLLAR Cast In Stack High Cast Collar 40-65mm, FyreCOLLAR Cast In Stack High Cast Collar 80-100mm |
|---|
