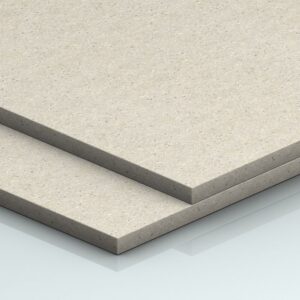

Maxilite is a lightweight, high-performance fire-rated board. Maxilite is a calcium silicate-based product and is bonded together with non-organic binders. It is completely free from asbestos, volatile organic compounds (VOC’s), and ozone-depleting potential (ODP). Maxilite is an extremely effective insulating refractory board. The board is stable under high-temperature stress and remains strong and free of cracks, even when exposed to fully developed fires.
Due to the lightweight construction of the board, Maxilite is easy to handle and work with, ensuring quick onsite installation, whilst retaining suitable fire performance. Maxilite’s high fire performance ensures minimal thicknesses are required, hence less material usage and cost.
Options:
Maxilite Board L 2040x1220x30mm
Maxilite Board L 2040x1220x40mm
Maxilite Board L 2040x1220x60mm
Maxilite Board 1525x1000x30mm
Maxilite Board 1525x1000x40mm
Maxilite Board 1525x1000x60mm
Galvanized Angles- L Shape Thickness: 0.9mm Gal Size: 1220mm Dimensions: 50 x 50 x 1220mm

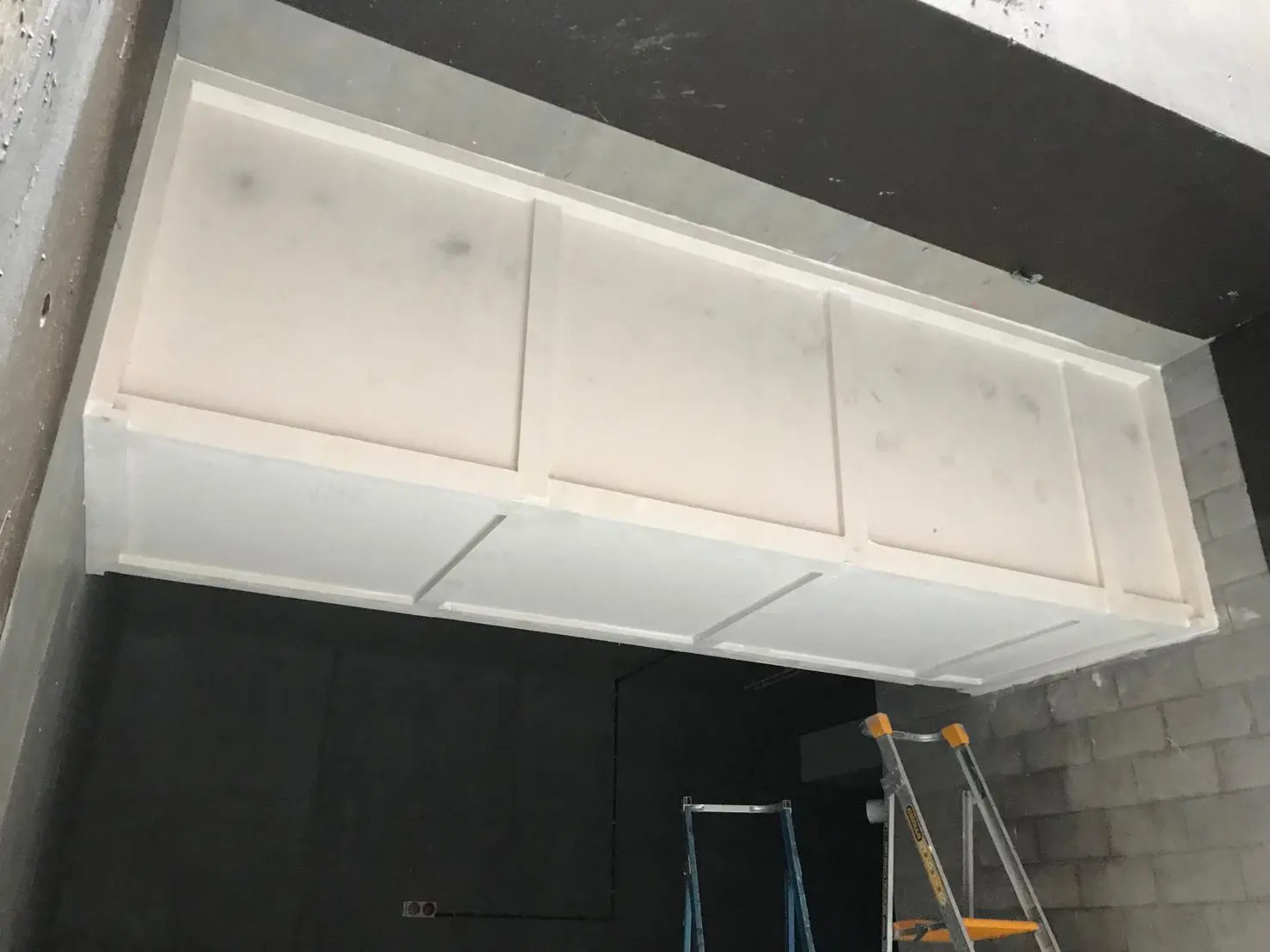

FyreBOARD Maxilite® is a thin, lightweight, high-performance fire-resistant board that is suited to various applications. Maxilite is stable under high temperatures which makes it the perfect solution for constructing fire-rated bulkheads, ceilings, and enclosures and provides fire compartmentation around building services and is approved to AS1530.4-2014. Please review the technical manual for a full list of specific system FRL’s and installation requirements.
Often fire dampers are installed into openings that are too large to install correctly, so FyreBOARD Maxilite® has been approved for use to pack out the gaps around mechanical and intumescent fire dampers in walls and floors, in accordance with AS1530.4-2014. Please review the technical manual for a full list of specific system FRL’s and installation requirements.
Download the Technical Manual here
Structural Steel

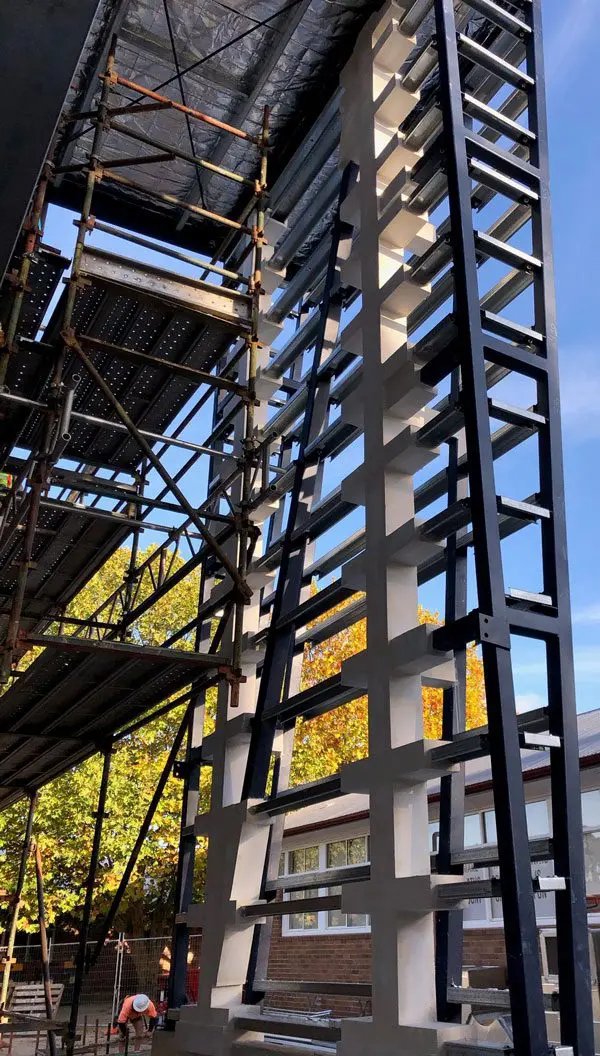

FyreBOARD Maxilite® is a lightweight high performance fire rated board available in 30mm, 40mm and 60mm thicknesses for use in fire protection for a large range of structural steel sizes and types for up to 4 hours of protection. FyreBOARD Maxilite® has been tested to various international test standards as well as AS1530.4, with complete regression analysis that complies with AS4100 as appropriate for steel protection under Schedule 5 of the NCC. Please review the Structural Steel technical manual to look up your steel section/size to find what thickness of board is needed for your next project.

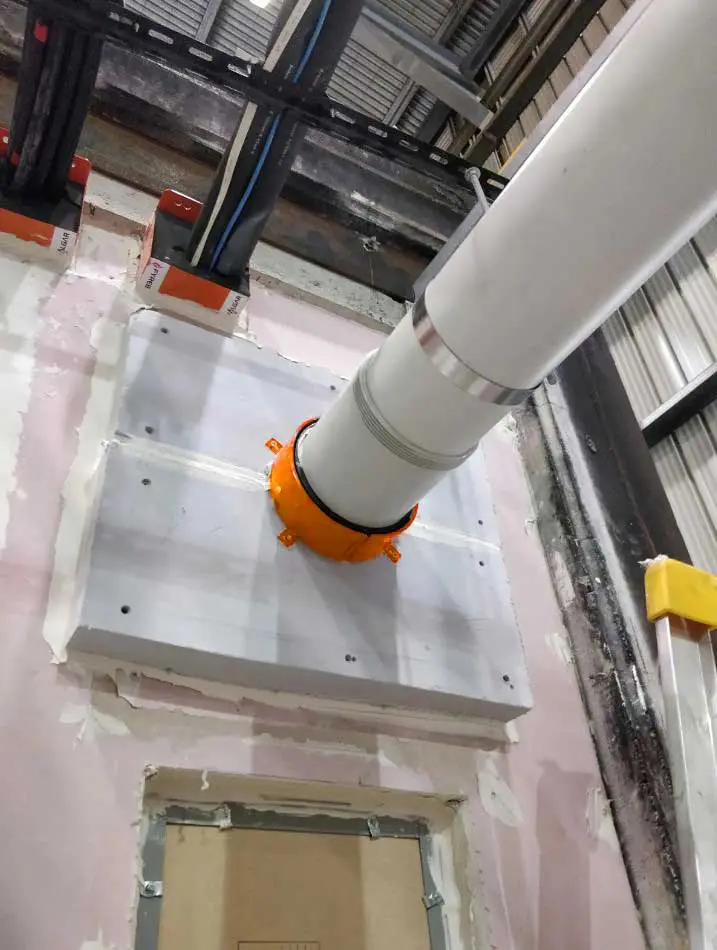

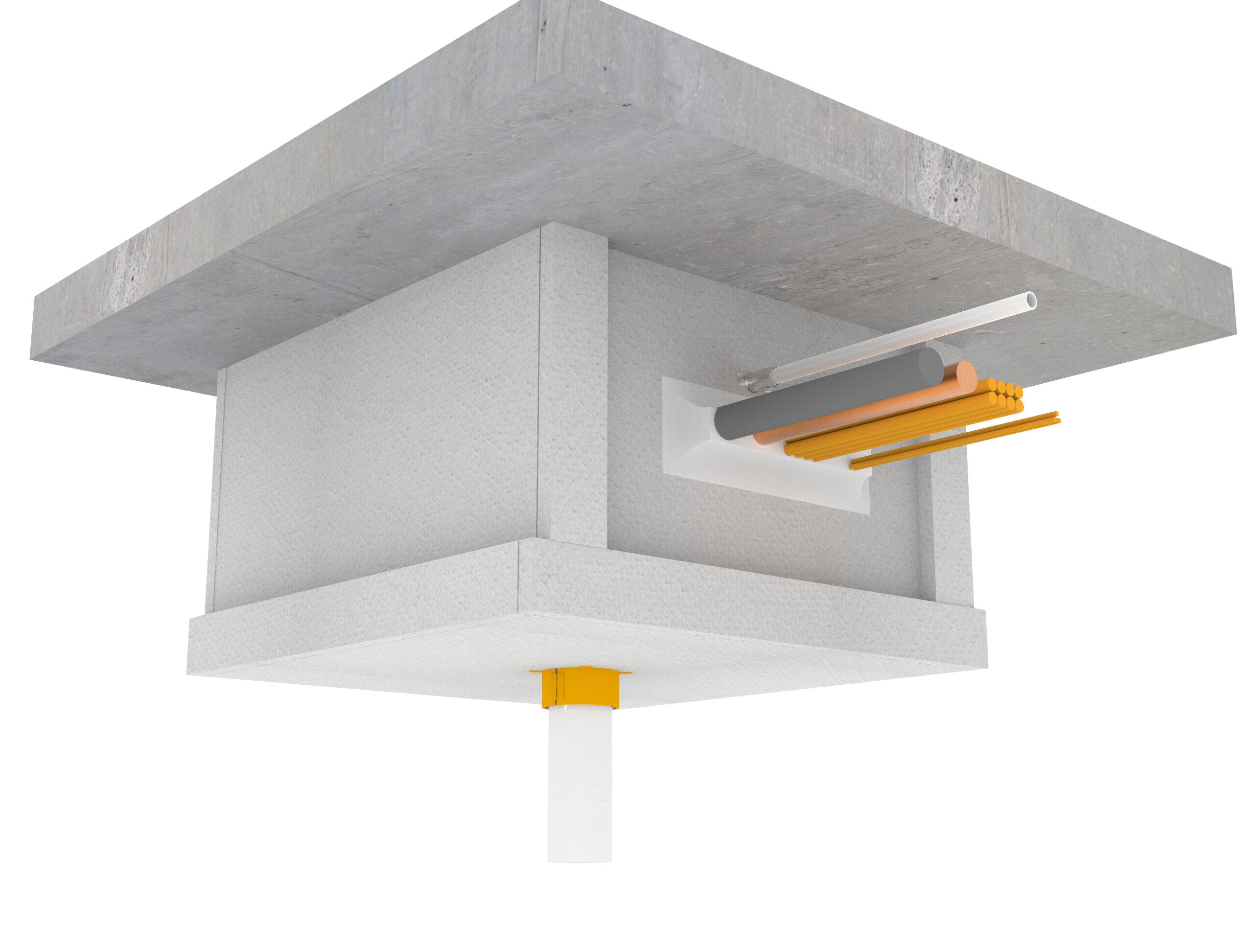

FyreBOARD Maxilite® has been approved for use as a compliant penetration system to fix to the soffit of a concrete slab to protect services that feed into floor mounted switch boxes, such are commonplace in board-rooms and schools. This system also provides a compliant system to seal PVC conduits that are cast-into the concrete floor and exit at through soffit of the slab. Services that pass through the FyreBOARD Maxilite® in this configuration can be sealed with FyreFLEX® sealant (for cables) and continuous PVC conduits may be treated by installing a retrofit FyreCOLLAR fixed into the FyreBOARD Maxilite® as shown in the installation drawings in the below technical manual.
Please check with the manufacturer for the most up-to-date system applications, installation requirements and test data
| Option | Maxilite Board L 2040x1220x30mm, Maxilite Board L 2040x1220x40mm, Maxilite Board L 2040x1220x60mm, Maxilite Board 1525x1000x30mm, Maxilite Board 1525x1000x40mm, Maxilite Board 1525x1000x60mm, Galvanized Angles- L Shape Thickness: 0.9mm Gal Size: 1220mm Dimensions: 50 x 50 x 1220mm |
|---|
