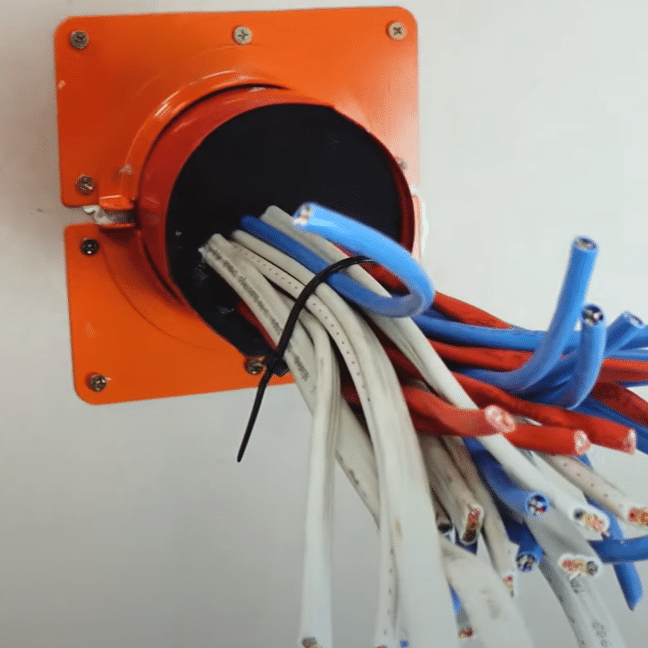

The Trafalgar SuperSTOPPER® Circular is a high-performance fire-rated penetration system designed to seal around mixed services in round core holes and plasterboard openings. Engineered for speed, versatility, and compliance, it provides superior protection against fire, smoke, sound, air leakage, and seismic movement — all in a compact circular form.
This retrofit-friendly system is lined with intumescent material and includes foam plugs for acoustic and thermal performance, allowing for quick changes to services without compromising compliance. Designed to friction-fit into circular holes using the innovative FyreFLANGE, it removes the need for drilling into fire barriers while accommodating a wide range of pipes, cables, and conduits in any layout.
Tested in leading wall, floor, and ceiling systems to AS1530.4-2014 standards, the SuperSTOPPER® Circular offers proven reliability for electricians, plumbers, HVAC, and fire services.
Options available: Sizes to suit standard core holes and custom mixed service configurations.
Trafalgar’s SuperSTOPPER® Circular stands as a cutting-edge solution for containing not just fire but also a range of other crucial elements within service penetrations in modern-day buildings. It was meticulously developed to provide the ultimate in containment or SUPER containment properties, addressing various needs, including fire, smoke, sound, energy, air leakage, and even the challenges of stringent seismic movements. The SuperSTOPPER Circular is the answer to today’s multifaceted containment requirements.
The circular shape has been engineered and sized to allow for quick neat, and cost-effective holes to be made in fire barriers, Whether it is a core hole in a concrete floor slab or a hole saw in a plasterboard wall; openings can be prepared to suit the inclusion of a SuperSTOPPER® Circular for mixed services.
The Trafalgar FyreFLANGE is an integral and equally innovative means of fitting the Superstopper into the opening. It is square to assist with catering for real-world annular gaps made in the fire barrier and can friction fit the SuperStopper in place without needing to drill into the fire barrier.

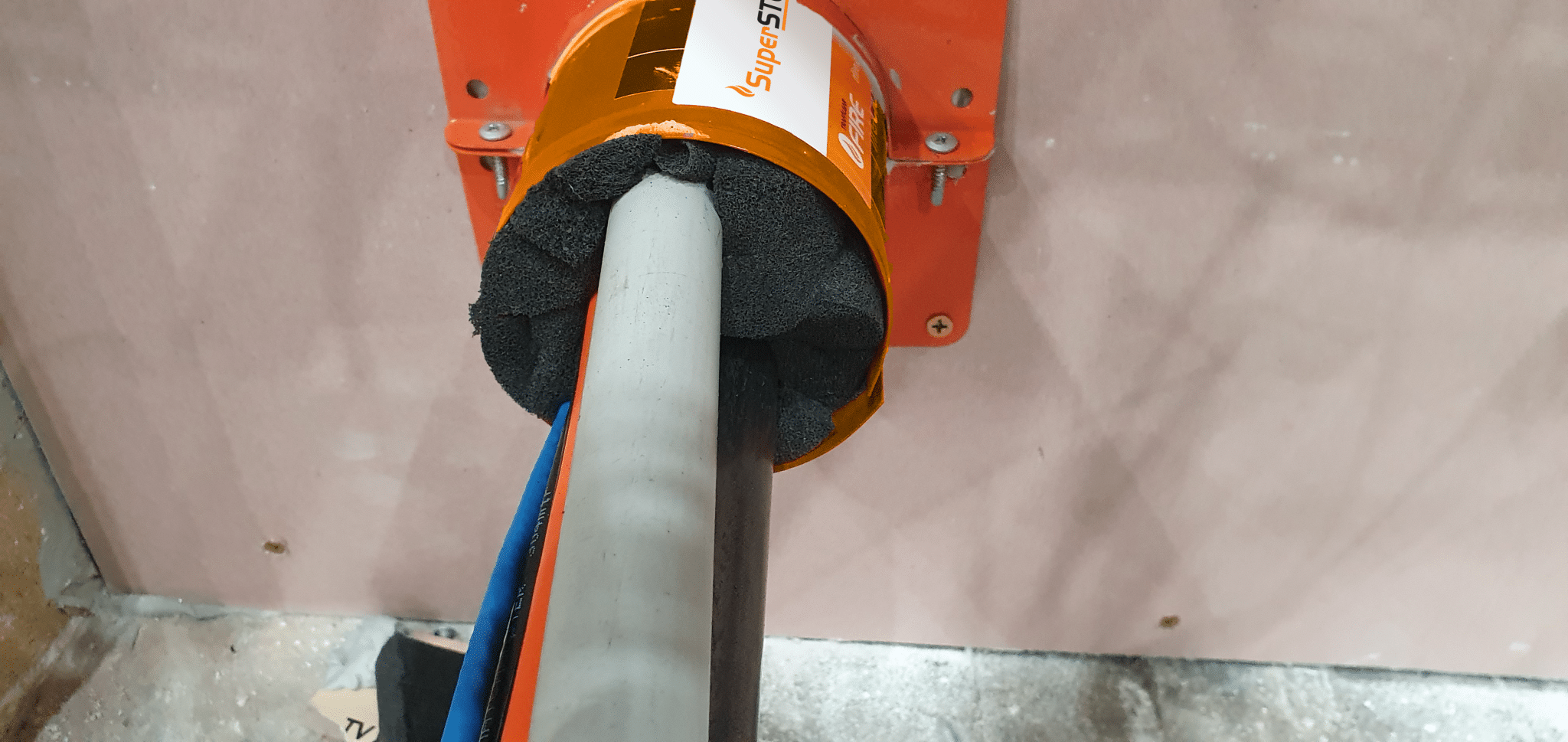

Intumescent foam plugs are also fitted, giving the SuperSTOPPER® Circular superior reliability and acoustic properties, and the ability to allow for adds, moves, and changes.
Core holes are often created in concrete floor slabs to accommodate various services, such as plumbing, electrical wiring, or data cables. These openings can potentially compromise the integrity of fire barriers within a building. The SuperSTOPPER® Circular offers a practical solution to protect these penetrations, even when core holes are present.
When core holes are present in the floor slab, the SuperSTOPPER® Circular can be easily installed from the top side, providing a convenient and efficient way to safeguard the penetration without the need for complex or time-consuming installation procedures. This approach not only simplifies the installation process but also ensures that fire and smoke containment is maintained even when service penetrations are present.
In Stock
| Option | Maxi – 350 Length x 250 Depth x 125mm Height. Including pair of FyreFLANGES, Maxi – 550 Length x 250 Depth x 125mm Height. Including pair of FyreFLANGES, Maxi – 650 Length x 250 Depth x 125mm Height. Including pair of FyreFLANGES, Maxi – 750 Length x 250 Depth x 125mm Height. Including pair of FyreFLANGES, Maxi – 1100 Length x 250 Depth x 125mm Height. Including pair of FyreFLANGES, Maxi Custom |
|---|
