PROMAT – PROMATECT® XS

$0.00

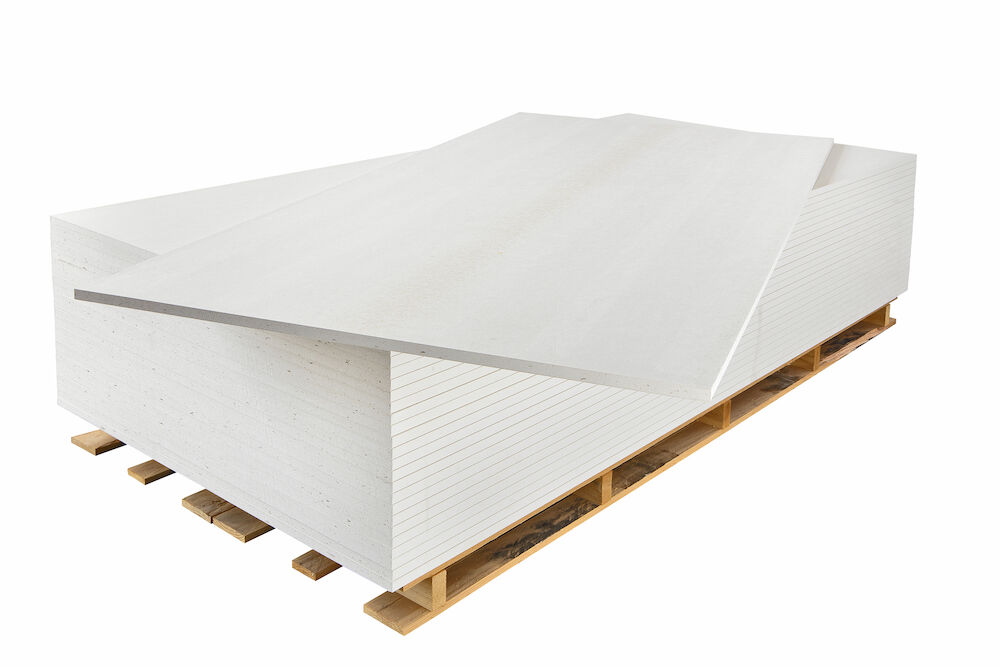

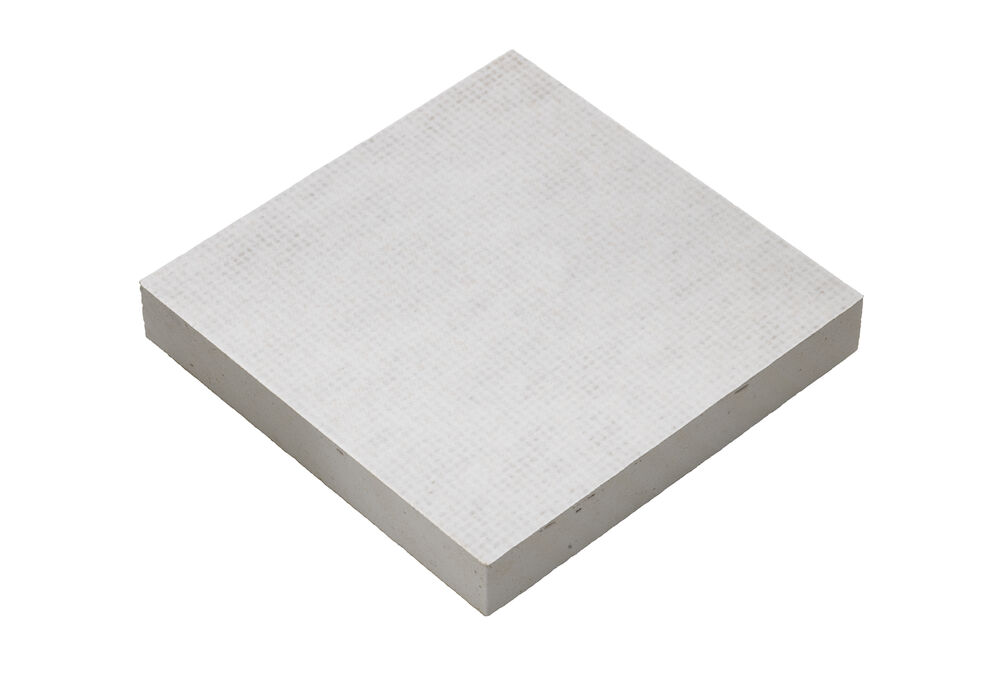

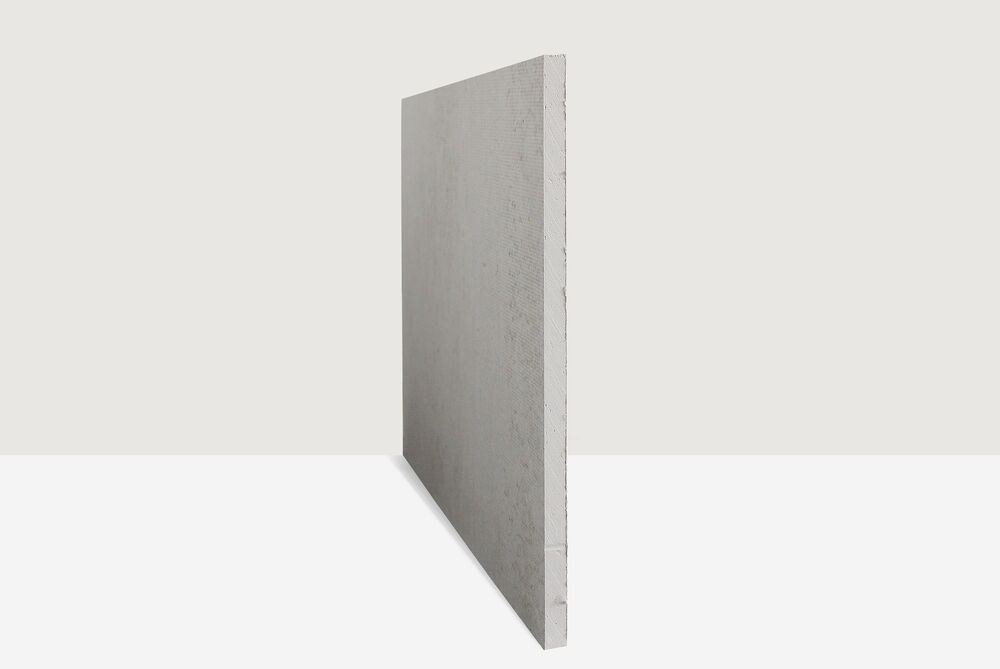

PROMATECT^®-XS is a high performing fire protective board, specifically designed for the fire protection of structural steel elements, combining high fire protection performance and easy installation.

Options:
PROMATECT® XS – 2000x1200x15mm (26)
PROMATECT® XS – 2000x1200x20mm (24)
PROMATECT® XS – 2000x1200x25mm (18)
44mm N-Series Steel Staple (5000) (Box)
50mm N-Series Steel Staple (5000) (Box)
N-Series Pneumatic Air Stapler (Box)

Description
Additional information

Description

Applications:

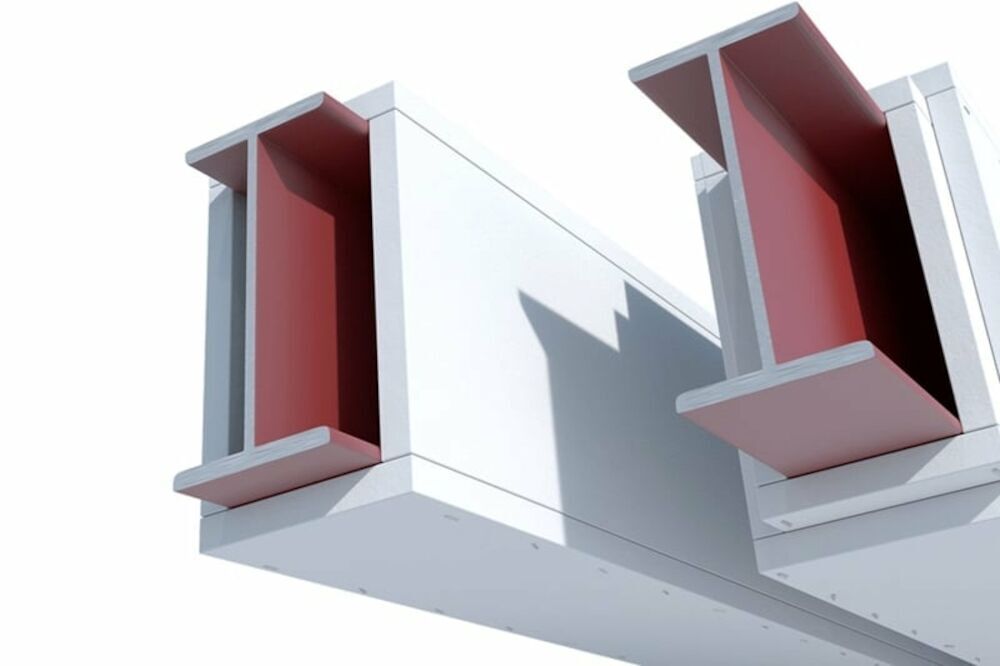

Fire protection of steel structures

Benefits:

Low board thickness needed for any given fire protection
Easy installation with staple fixings and no glue or filler
Suitable for semi-exposed external conditions

Reaction to fire: A1, non-combustible

Use Category: Y, Z₂,

Approx. Dry Density (kg/m³): 910 kg/m³

Approx. Thermal Conductivity @ 20 °C (W/m°K): 0.21 W/m K

Bending Strength Longitudinal (N/mm²): 6 N/mm²

Tensile Strength Longitudinal (N/mm²): 1.5 N/mm²

Compressive Strength (N/mm² perpendicularly to the board surface): 6 N/mm²

Storage Conditions: Store in a dry and well-ventilated space, under cover, on a flat surface.

Please check with the manufacturer for the most up-to-date system applications, installation requirements and test data

Additional information

Type	PROMATECT® XS – 2000x1200x15mm (26), PROMATECT® XS – 2000x1200x20mm (24), PROMATECT® XS – 2000x1200x25mm (18), 44mm N-Series Steel Staple (5000) (Box), 50mm N-Series Steel Staple (5000) (Box), N-Series Pneumatic Air Stapler (Box)
