PROMAT – PROMASEAL® Supawrap Sleeve

$0.00

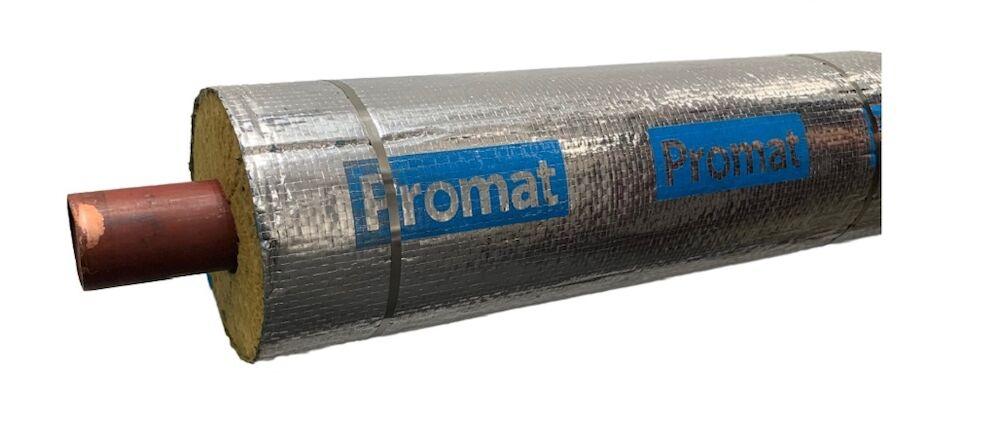

PROMASEAL^® SupaWrap Sleeve is designed to provide insulation criteria onto metal pipes.

The deemed to satisfy requirements of the Building Code of Australia requires copper pipes and other service penetrations to be able to achieve the same insulation criteria as the element they are passing through when tested to the requirements of AS 1530.4:2014.

For metal pipes in walls and through slabs. A length of 600mm is required using the PROMASEAL^® SupaWrap. Generally, the requirement is for application to both faces of the element. However, for slabs there are selected approvals available for application to the top side only with various lengths.

Options:
PROMASEAL® Supawrap Sleeve 13mm (15/Box)
PROMASEAL® Supawrap Sleeve 21mm (14/Box)
PROMASEAL® Supawrap Sleeve 25mm (12/Box)
PROMASEAL® Supawrap Sleeve 32mm (10/Box)
PROMASEAL® Supawrap Sleeve 42mm (9/Box)
PROMASEAL® Supawrap Sleeve 50mm (9/Box)
PROMASEAL® Supawrap Sleeve 63mm (6/Box)
PROMASEAL® Supawrap Sleeve 89mm (4/Box)
PROMASEAL® Supawrap Sleeve 102mm (4/Box)

Description
Additional information

Description

Applications:

Service Penetrations
Available to suit pipes from 20 to 100mm

Benefits:

600mm long for most metal pipes and orientations
Will provide up to 120 minutes insulation on various types of services when used in partnership with other Promat Firestopping products.
Sold as a preformed sleeve to suit a variety of standard metal pipe sizes
PROMASEAL^® SupaWrap is an alternative to 38mm Fibretex 450

Storage Conditions: Store in cool and dry conditions.

Please check with the manufacturer for the most up-to-date system applications, installation requirements and test data

Additional information

Type	PROMASEAL® Supawrap Sleeve 13mm (15/Box), PROMASEAL® Supawrap Sleeve 21mm (14/Box), PROMASEAL® Supawrap Sleeve 25mm (12/Box), PROMASEAL® Supawrap Sleeve 32mm (10/Box), PROMASEAL® Supawrap Sleeve 42mm (9/Box), PROMASEAL® Supawrap Sleeve 50mm (9/Box), PROMASEAL® Supawrap Sleeve 63mm (6/Box), PROMASEAL® Supawrap Sleeve 89mm (4/Box), PROMASEAL® Supawrap Sleeve 102mm (4/Box)
